Renderer Extension

The renderer extension api is the interface to Lens's renderer process (Lens runs in main and renderer processes). It allows you to access, configure, and customize Lens data, add custom Lens UI elements, and generally run custom code in Lens's renderer process. The custom Lens UI elements that can be added include global pages, cluster pages, cluster page menus, cluster features, app preferences, status bar items, KubeObject menu items, and KubeObject details items. These UI elements are based on React components.

LensRendererExtension Class

To create a renderer extension simply extend the LensRendererExtension class:

import { LensRendererExtension } from "@k8slens/extensions";

export default class ExampleExtensionMain extends LensRendererExtension {
  onActivate() {
    console.log('custom renderer process extension code started');
  }

  onDeactivate() {
    console.log('custom renderer process extension de-activated');
  }
}

There are two methods that you can implement to facilitate running your custom code. onActivate() is called when your extension has been successfully enabled. By implementing onActivate() you can initiate your custom code. onDeactivate() is called when the extension is disabled (typically from the Lens Extensions Page) and when implemented gives you a chance to clean up after your extension, if necessary. The example above simply logs messages when the extension is enabled and disabled.

clusterPages

Cluster pages appear as part of the cluster dashboard. They are accessible from the side bar, and are shown in the menu list after Custom Resources. It is conventional to use a cluster page to show information or provide functionality pertaining to the active cluster, along with custom data and functionality your extension may have. However, it is not limited to the active cluster. Also, your extension can gain access to the Kubernetes resources in the active cluster in a straightforward manner using the clusterStore.

The following example adds a cluster page definition to a LensRendererExtension subclass:

import { LensRendererExtension } from "@k8slens/extensions";
import { ExampleIcon, ExamplePage } from "./page"
import React from "react"

export default class ExampleExtension extends LensRendererExtension {
  clusterPages = [
    {
      id: "hello",
      components: {
        Page: () => <ExamplePage extension={this}/>,
      }
    }
  ];
}

Cluster pages are objects matching the PageRegistration interface. The id field identifies the page, and at its simplest is just a string identifier, as shown in the example above. The 'id' field can also convey route path details, such as variable parameters provided to a page (See example below). The components field matches the PageComponents interface for wich there is one field, Page. Page is of type React.ComponentType<any>, which gives you great flexibility in defining the appearance and behaviour of your page. For the example above ExamplePage can be defined in page.tsx:

import { LensRendererExtension } from "@k8slens/extensions";
import React from "react"

export class ExamplePage extends React.Component<{ extension: LensRendererExtension }> {
  render() {
    return (
      <div>
        <p>Hello world!</p>
      </div>
    )
  }
}

Note that the ExamplePage class defines a property named extension. This allows the ExampleExtension object to be passed in React-style in the cluster page definition, so that ExamplePage can access any ExampleExtension subclass data.

clusterPageMenus

The above example code shows how to create a cluster page but not how to make it available to the Lens user. Cluster pages are typically made available through a menu item in the cluster dashboard sidebar. Expanding on the above example a cluster page menu is added to the ExampleExtension definition:

import { LensRendererExtension } from "@k8slens/extensions";
import { ExampleIcon, ExamplePage } from "./page"
import React from "react"

export default class ExampleExtension extends LensRendererExtension {
  clusterPages = [
    {
      id: "hello",
      components: {
        Page: () => <ExamplePage extension={this}/>,
      }
    }
  ];

  clusterPageMenus = [
    {
      target: { pageId: "hello" },
      title: "Hello World",
      components: {
        Icon: ExampleIcon,
      }
    },
  ];
}

Cluster page menus are objects matching the ClusterPageMenuRegistration interface. They define the appearance of the cluster page menu item in the cluster dashboard sidebar and the behaviour when the cluster page menu item is activated (typically by a mouse click). The example above uses the target field to set the behaviour as a link to the cluster page with id of "hello". This is done by setting target's pageId field to "hello". The cluster page menu item's appearance is defined by setting the title field to the text that is to be displayed in the cluster dashboard sidebar. The components field is used to set an icon that appears to the left of the title text in the sidebar. Thus when the "Hello World" menu item is activated the cluster dashboard will show the contents of ExamplePage. This example requires the definition of another React-based component, ExampleIcon, which has been added to page.tsx:

import { LensRendererExtension, Component } from "@k8slens/extensions";
import React from "react"

export function ExampleIcon(props: Component.IconProps) {
  return <Component.Icon {...props} material="pages" tooltip={"Hi!"}/>
}

export class ExamplePage extends React.Component<{ extension: LensRendererExtension }> {
  render() {
    return (
      <div>
        <p>Hello world!</p>
      </div>
    )
  }
}

ExampleIcon introduces one of Lens's built-in components available to extension developers, the Component.Icon. Built in are the Material Design icons. One can be selected by name via the material field. ExampleIcon also sets a tooltip, shown when the Lens user hovers over the icon with a mouse, by setting the tooltip field.

A cluster page menu can also be used to define a foldout submenu in the cluster dashboard sidebar. This enables the grouping of cluster pages. The following example shows how to specify a submenu having two menu items:

import { LensRendererExtension } from "@k8slens/extensions";
import { ExampleIcon, ExamplePage } from "./page"
import React from "react"

export default class ExampleExtension extends LensRendererExtension {
  clusterPages = [
    {
      id: "hello",
      components: {
        Page: () => <ExamplePage extension={this}/>,
      }
    },
    {
      id: "bonjour",
      components: {
        Page: () => <ExemplePage extension={this}/>,
      }
    }
  ];

  clusterPageMenus = [
    {
      id: "example",
      title: "Greetings",
      components: {
        Icon: ExampleIcon,
      }
    },
    {
      parentId: "example",
      target: { pageId: "hello" },
      title: "Hello World",
      components: {
        Icon: ExampleIcon,
      }
    },
    {
      parentId: "example",
      target: { pageId: "bonjour" },
      title: "Bonjour le monde",
      components: {
        Icon: ExempleIcon,
      }
    }
  ];
}

The above defines two cluster pages and three cluster page menu objects. The cluster page definitons are straightforward. The first cluster page menu object defines the parent of a foldout submenu. Setting the id field in a cluster page menu definition implies that it is defining a foldout submenu. Also note that the target field is not specified (it is ignored if the id field is specified). This cluster page menu object specifies the title and components fields, which are used in displaying the menu item in the cluster dashboard sidebar. Initially the submenu is hidden. Activating this menu item toggles on and off the appearance of the submenu below it. The remaining two cluster page menu objects define the contents of the submenu. A cluster page menu object is defined to be a submenu item by setting the parentId field to the id of the parent of a foldout submenu, "example" in this case

globalPages

Global pages appear independently of the cluster dashboard and they fill the Lens UI space. A global page is typically triggered from the cluster menu using a global page menu. They can also be triggered by a custom app menu selection from a Main Extension or a custom status bar item. Global pages can appear even when there is no active cluster, unlike cluster pages. It is conventional to use a global page to show information and provide functionality relevant across clusters, along with custom data and functionality that your extension may have.

The following example defines a LensRendererExtension subclass with a single global page definition:

import { LensRendererExtension } from '@k8slens/extensions';
import { HelpPage } from './page';
import React from 'react';

export default class HelpExtension extends LensRendererExtension {
  globalPages = [
    {
      id: "help",
      components: {
        Page: () => <HelpPage extension={this}/>,
      }
    }
  ];
}

Global pages are objects matching the PageRegistration interface. The id field identifies the page, and at its simplest is just a string identifier, as shown in the example above. The 'id' field can also convey route path details, such as variable parameters provided to a page (See example below). The components field matches the PageComponents interface for which there is one field, Page. Page is of type React.ComponentType<any>, which gives you great flexibility in defining the appearance and behaviour of your page. For the example above HelpPage can be defined in page.tsx:

import { LensRendererExtension } from "@k8slens/extensions";
import React from "react"

export class HelpPage extends React.Component<{ extension: LensRendererExtension }> {
  render() {
    return (
      <div>
        <p>Help yourself</p>
      </div>
    )
  }
}

Note that the HelpPage class defines a property named extension. This allows the HelpExtension object to be passed in React-style in the global page definition, so that HelpPage can access any HelpExtension subclass data.

This example code shows how to create a global page but not how to make it available to the Lens user. Global pages are typically made available through a number of ways. Menu items can be added to the Lens app menu system and set to open a global page when activated (See appMenus in the Main Extension guide). Interactive elements can be placed on the status bar (the blue strip along the bottom of the Lens UI) and can be configured to link to a global page when activated (See statusBarItems). As well, global pages can be made accessible from the cluster menu, which is the vertical strip along the left side of the Lens UI showing the available cluster icons, and the Add Cluster icon. Global page menu icons that are defined using globalPageMenus appear below the Add Cluster icon.

globalPageMenus

Global page menus connect a global page to the cluster menu, which is the vertical strip along the left side of the Lens UI showing the available cluster icons, and the Add Cluster icon. Expanding on the example from globalPages a global page menu is added to the HelpExtension definition:

import { LensRendererExtension } from "@k8slens/extensions";
import { HelpIcon, HelpPage } from "./page"
import React from "react"

export default class HelpExtension extends LensRendererExtension {
  globalPages = [
    {
      id: "help",
      components: {
        Page: () => <HelpPage extension={this}/>,
      }
    }
  ];

  globalPageMenus = [
    {
      target: { pageId: "help" },
      title: "Help",
      components: {
        Icon: HelpIcon,
      }
    },
  ];
}

Global page menus are objects matching the PageMenuRegistration interface. They define the appearance of the global page menu item in the cluster menu and the behaviour when the global page menu item is activated (typically by a mouse click). The example above uses the target field to set the behaviour as a link to the global page with id of "help". This is done by setting target's pageId field to "help". The global page menu item's appearance is defined by setting the title field to the text that is to be displayed as a tooltip in the cluster menu. The components field is used to set an icon that appears in the cluster menu. Thus when the "Help" icon is activated the contents of ExamplePage will be shown. This example requires the definition of another React-based component, HelpIcon, which has been added to page.tsx:

import { LensRendererExtension, Component } from "@k8slens/extensions";
import React from "react"

export function HelpIcon(props: Component.IconProps) {
  return <Component.Icon {...props} material="help"/>
}

export class HelpPage extends React.Component<{ extension: LensRendererExtension }> {
  render() {
    return (
      <div>
        <p>Help</p>
      </div>
    )
  }
}

HelpIcon introduces one of Lens's built-in components available to extension developers, the Component.Icon. Built in are the Material Design icons. One can be selected by name via the material field.

clusterFeatures

Cluster features are Kubernetes resources that can be applied to and managed within the active cluster. They can be installed/uninstalled by the Lens user from the cluster settings page.

The following example shows how to add a cluster feature as part of a LensRendererExtension:

import { LensRendererExtension } from "@k8slens/extensions"
import { ExampleFeature } from "./src/example-feature"
import React from "react"

export default class ExampleFeatureExtension extends LensRendererExtension {
  clusterFeatures = [
    {
      title: "Example Feature",
      components: {
        Description: () => {
          return (
            <span>
                Enable an example feature.
            </span>
          )
        }
      },
      feature: new ExampleFeature()
    }
  ];
}

The title and components.Description fields provide content that appears on the cluster settings page, in the Features section. The feature field must specify an instance which extends the abstract class ClusterFeature.Feature, and specifically implement the following methods:

  abstract install(cluster: Cluster): Promise<void>;
  abstract upgrade(cluster: Cluster): Promise<void>;
  abstract uninstall(cluster: Cluster): Promise<void>;
  abstract updateStatus(cluster: Cluster): Promise<ClusterFeatureStatus>;

The install() method is typically called by Lens when a user has indicated that this feature is to be installed (i.e. clicked Install for the feature on the cluster settings page). The implementation of this method should install kubernetes resources using the applyResources() method, or by directly accessing the kubernetes api (K8sApi).

The upgrade() method is typically called by Lens when a user has indicated that this feature is to be upgraded (i.e. clicked Upgrade for the feature on the cluster settings page). The implementation of this method should upgrade the kubernetes resources already installed, if relevant to the feature.

The uninstall() method is typically called by Lens when a user has indicated that this feature is to be uninstalled (i.e. clicked Uninstall for the feature on the cluster settings page). The implementation of this method should uninstall kubernetes resources using the kubernetes api (K8sApi)

The updateStatus() method is called periodically by Lens to determine details about the feature's current status. The implementation of this method should provide the current status information in the status field of the ClusterFeature.Feature parent class. The status.currentVersion and status.latestVersion fields may be displayed by Lens in describing the feature. The status.installed field should be set to true if the feature is currently installed, otherwise false. Also, Lens relies on the status.canUpgrade field to determine if the feature can be upgraded (i.e a new version could be available) so the implementation should set the status.canUpgrade field according to specific rules for the feature, if relevant.

The following shows a very simple implementation of a ClusterFeature:

import { ClusterFeature, Store, K8sApi } from "@k8slens/extensions";
import * as path from "path";

export class ExampleFeature extends ClusterFeature.Feature {

  async install(cluster: Store.Cluster): Promise<void> {

    super.applyResources(cluster, path.join(__dirname, "../resources/"));
  }

  async upgrade(cluster: Store.Cluster): Promise<void> {
    return this.install(cluster);
  }

  async updateStatus(cluster: Store.Cluster): Promise<ClusterFeature.FeatureStatus> {
    try {
      const pod = K8sApi.forCluster(cluster, K8sApi.Pod);
      const examplePod = await pod.get({name: "example-pod", namespace: "default"});
      if (examplePod?.kind) {
        this.status.installed = true;
        this.status.currentVersion = examplePod.spec.containers[0].image.split(":")[1];
        this.status.canUpgrade = true;  // a real implementation would perform a check here that is relevant to the specific feature
      } else {
        this.status.installed = false;
        this.status.canUpgrade = false;
      }
    } catch(e) {
      if (e?.error?.code === 404) {
        this.status.installed = false;
        this.status.canUpgrade = false;
      }
    }

    return this.status;
  }

  async uninstall(cluster: Store.Cluster): Promise<void> {
    const podApi = K8sApi.forCluster(cluster, K8sApi.Pod);
    await podApi.delete({name: "example-pod", namespace: "default"});
  }
}

This example implements the install() method by simply invoking the helper applyResources() method. applyResources() tries to apply all resources read from all files found in the folder path provided. In this case this folder path is the ../resources subfolder relative to current source code's folder. The file ../resources/example-pod.yml could contain:

apiVersion: v1
kind: Pod
metadata:
  name: example-pod
spec:
  containers:
  - name: example-pod
    image: nginx

The upgrade() method in the example above is implemented by simply invoking the install() method. Depending on the feature to be supported by an extension, upgrading may require additional and/or different steps.

The uninstall() method is implemented in the example above by utilizing the K8sApi provided by Lens to simply delete the example-pod pod applied by the install() method.

The updateStatus() method is implemented above by using the K8sApi as well, this time to get information from the example-pod pod, in particular to determine if it is installed, what version is associated with it, and if it can be upgraded. How the status is updated for a specific cluster feature is up to the implementation.

appPreferences

The Preferences page is a built-in global page. Extensions can add custom preferences to the Preferences page, thus providing a single location for users to configure global options, for Lens and extensions alike. The following example demonstrates adding a custom preference:

import { LensRendererExtension } from "@k8slens/extensions";
import { ExamplePreferenceHint, ExamplePreferenceInput } from "./src/example-preference";
import { observable } from "mobx";
import React from "react";

export default class ExampleRendererExtension extends LensRendererExtension {

  @observable preference = { enabled: false };

  appPreferences = [
    {
      title: "Example Preferences",
      components: {
        Input: () => <ExamplePreferenceInput preference={this.preference}/>,
        Hint: () => <ExamplePreferenceHint/>
      }
    }
  ];
}

App preferences are objects matching the AppPreferenceRegistration interface. The title field specifies the text to show as the heading on the Preferences page. The components field specifies two React.Component objects defining the interface for the preference. Input should specify an interactive input element for your preference and Hint should provide descriptive information for the preference, which is shown below the Input element. ExamplePreferenceInput expects its React props set to an ExamplePreferenceProps instance, which is how ExampleRendererExtension handles the state of the preference input. ExampleRendererExtension has the field preference, which is provided to ExamplePreferenceInput when it is created. In this example ExamplePreferenceInput, ExamplePreferenceHint, and ExamplePreferenceProps are defined in ./src/example-preference.tsx:

import { Component } from "@k8slens/extensions";
import { observer } from "mobx-react";
import React from "react";

export class ExamplePreferenceProps {
  preference: {
    enabled: boolean;
  }
}

@observer
export class ExamplePreferenceInput extends React.Component<ExamplePreferenceProps> {

  render() {
    const { preference } = this.props;
    return (
      <Component.Checkbox
        label="I understand appPreferences"
        value={preference.enabled}
        onChange={v => { preference.enabled = v; }}
      />
    );
  }
}

export class ExamplePreferenceHint extends React.Component {
  render() {
    return (
      <span>This is an example of an appPreference for extensions.</span>
    );
  }
}

ExamplePreferenceInput implements a simple checkbox (using Lens's Component.Checkbox). It provides label as the text to display next to the checkbox and an onChange function, which reacts to the checkbox state change. The checkbox's value is initially set to preference.enabled. ExamplePreferenceInput is defined with React props of ExamplePreferenceProps type, which is an object with a single field, enabled. This is used to indicate the state of the preference, and is bound to the checkbox state in onChange. ExamplePreferenceHint is a simple text span. Note that the input and the hint could comprise of more sophisticated elements, according to the needs of the extension.

Note that the above example introduces decorators observable and observer from the mobx and mobx-react packages. mobx simplifies state management and without it this example would not visually update the checkbox properly when the user activates it. Lens uses mobx extensively for state management of its own UI elements and it is recommended that extensions rely on it too. Alternatively, React's state management can be used, though mobx is typically simpler to use.

Also note that an extension's state data can be managed using an ExtensionStore object, which conveniently handles persistence and synchronization. The example above defined a preference field in the ExampleRendererExtension class definition to hold the extension's state primarily to simplify the code for this guide, but it is recommended to manage your extension's state data using ExtensionStore

statusBarItems

The Status bar is the blue strip along the bottom of the Lens UI. Status bar items are React.ReactNode types, which can be used to convey status information, or act as a link to a global page, or even an external page.

The following example adds a status bar item definition, as well as a global page definition, to a LensRendererExtension subclass, and configures the status bar item to navigate to the global page upon activation (normally a mouse click):

import { LensRendererExtension } from '@k8slens/extensions';
import { HelpIcon, HelpPage } from "./page"
import React from 'react';

export default class HelpExtension extends LensRendererExtension {
  globalPages = [
    {
      id: "help",
      components: {
        Page: () => <HelpPage extension={this}/>,
      }
    }
  ];

  statusBarItems = [
    {
      item: (
        <div
          className="flex align-center gaps"
          onClick={() => this.navigate("help")}
        >
          <HelpIcon />
          My Status Bar Item
        </div>
      ),
    },
  ];
}

The item field of a status bar item specifies the React.Component to be shown on the status bar. By default items are added starting from the right side of the status bar. Typically, item would specify an icon and/or a short string of text, considering the limited space on the status bar. In the example above the HelpIcon from the globalPageMenus guide is reused. Also, the item provides a link to the global page by setting the onClick property to a function that calls the LensRendererExtension navigate() method. navigate() takes as a parameter the id of the global page, which is shown when navigate() is called.

kubeObjectMenuItems

An extension can add custom menu items (including actions) for specific Kubernetes resource kinds/apiVersions. These menu items appear under the ... for each listed resource in the cluster dashboard, and on the title bar of the details page for a specific resource:

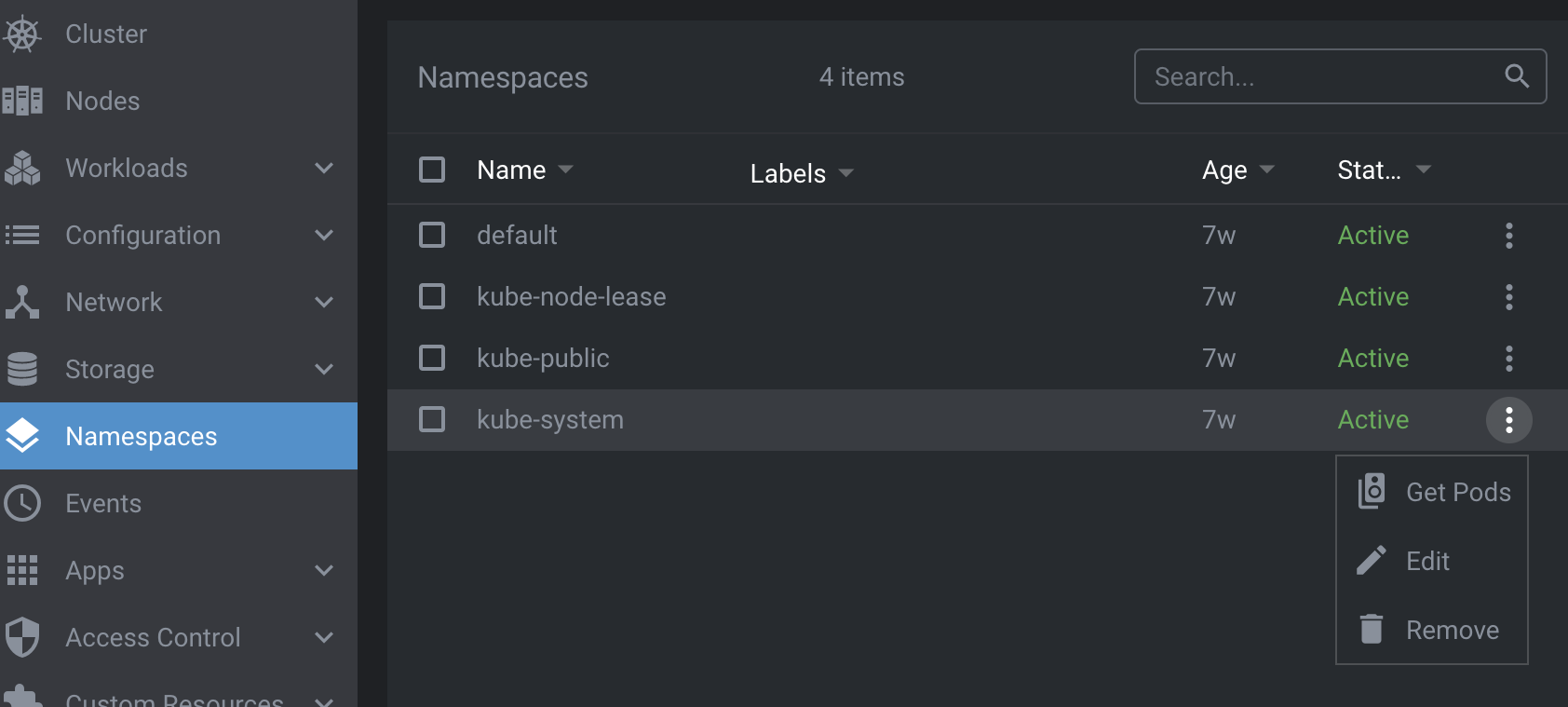

The following example shows how to add a menu for Namespace resources, and associate an action with it:

import React from "react"
import { LensRendererExtension } from "@k8slens/extensions";
import { NamespaceMenuItem } from "./src/namespace-menu-item"

export default class ExampleExtension extends LensRendererExtension {
  kubeObjectMenuItems = [
    {
      kind: "Namespace",
      apiVersions: ["v1"],
      components: {
        MenuItem: (props: Component.KubeObjectMenuProps<K8sApi.Namespace>) => <NamespaceMenuItem {...props} />
      }
    }
  ];
}

Kube object menu items are objects matching the KubeObjectMenuRegistration interface. The kind field specifies the kubernetes resource type to apply this menu item to, and the apiVersion field specifies the kubernetes api to use in relation to this resource type. This example adds a menu item for namespaces in the cluster dashboard. The components field defines the menu item's appearance and behaviour. The MenuItem field provides a function that returns a React.Component given a set of menu item properties. In this example a NamespaceMenuItem object is returned. NamespaceMenuItem is defined in ./src/namespace-menu-item.tsx:

import React from "react";
import { Component, K8sApi, Navigation} from "@k8slens/extensions";

export function NamespaceMenuItem(props: Component.KubeObjectMenuProps<K8sApi.Namespace>) {
  const { object: namespace, toolbar } = props;
  if (!namespace) return null;

  const namespaceName = namespace.getName();

  const sendToTerminal = (command: string) => {
    Component.terminalStore.sendCommand(command, {
      enter: true,
      newTab: true,
    });
    Navigation.hideDetails();
  };

  const getPods = () => {
    sendToTerminal(`kubectl get pods -n ${namespaceName}`);
  };

  return (
    <Component.MenuItem onClick={getPods}>
    <Component.Icon material="speaker_group" interactive={toolbar} title="Get pods in terminal"/>
    <span className="title">Get Pods</span>
    </Component.MenuItem>
  );
}

NamespaceMenuItem returns a Component.MenuItem defining the menu item's appearance (icon and text) and behaviour when activated via the onClick property. getPods() shows how to open a terminal tab and run a command, specifically it runs kubectl to get a list of pods running in the current namespace. See Component.terminalStore.sendCommand for more details on running terminal commands. The name of the namespace is retrieved from props passed into NamespaceMenuItem(). namespace is the props.object, which is of type K8sApi.Namespace. This is the api for accessing namespaces, and the current namespace in this example is simply given by namespace.getName(). Thus kube object menu items are afforded convenient access to the specific resource selected by the user.

kubeObjectDetailItems

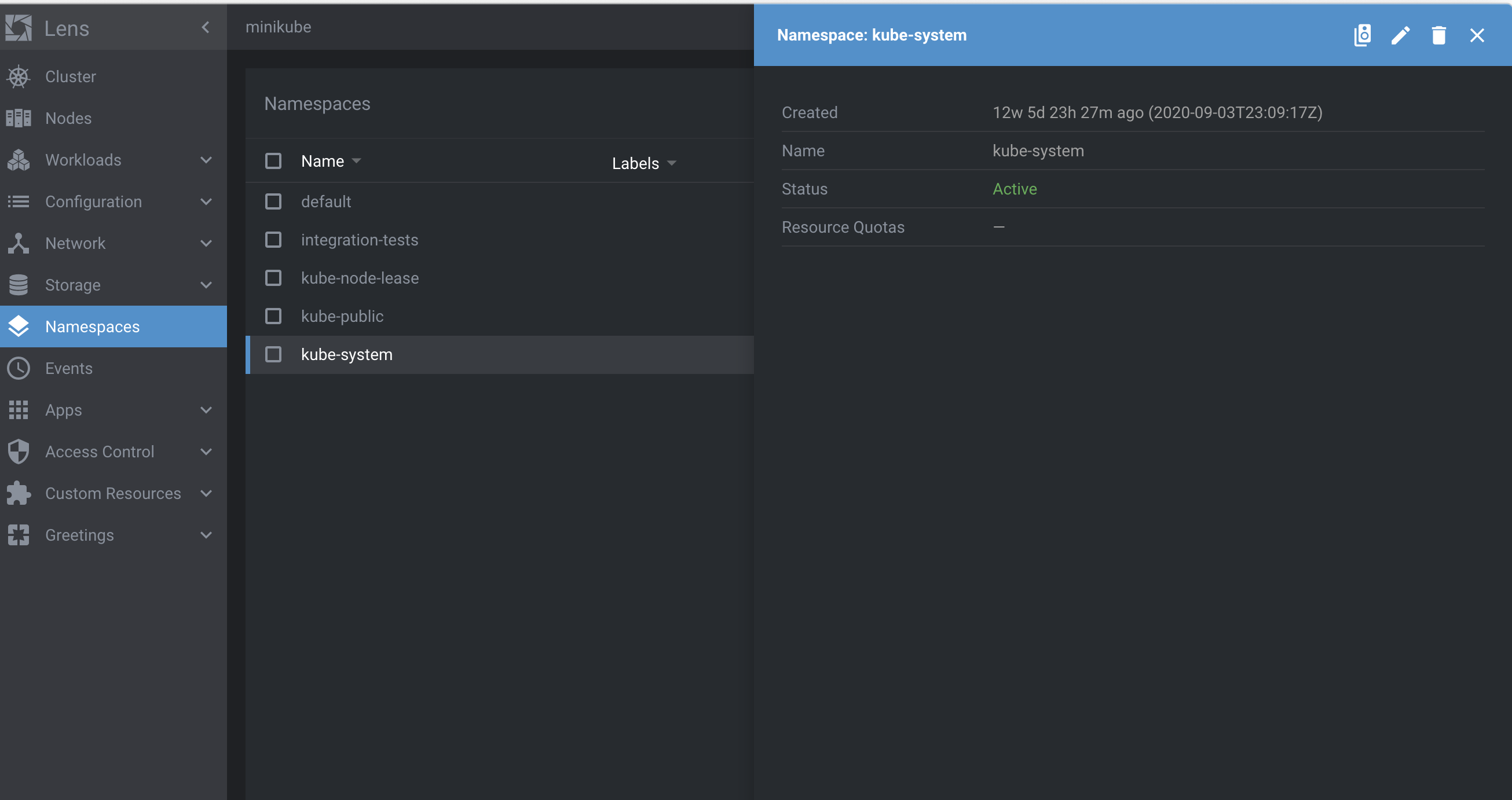

An extension can add custom details (content) for specified Kubernetes resource kinds/apiVersions. These custom details appear on the details page for a specific resource, such as a Namespace:

The following example shows how to add a tabulated list of pods to the Namespace resource details page:

import React from "react"
import { LensRendererExtension } from "@k8slens/extensions";
import { NamespaceDetailsItem } from "./src/namespace-details-item"

export default class ExampleExtension extends LensRendererExtension {
  kubeObjectDetailItems = [
    {
      kind: "Namespace",
      apiVersions: ["v1"],
      priority: 10,
      components: {
        Details: (props: Component.KubeObjectDetailsProps<K8sApi.Namespace>) => <NamespaceDetailsItem {...props} />
      }
    }
  ];
}

Kube object detail items are objects matching the KubeObjectDetailRegistration interface. The kind field specifies the kubernetes resource type to apply this detail item to, and the apiVersion field specifies the kubernetes api to use in relation to this resource type. This example adds a detail item for namespaces in the cluster dashboard. The components field defines the detail item's appearance and behaviour. The Details field provides a function that returns a React.Component given a set of detail item properties. In this example a NamespaceDetailsItem object is returned. NamespaceDetailsItem is defined in ./src/namespace-details-item.tsx:

import { Component, K8sApi } from "@k8slens/extensions";
import { PodsDetailsList } from "./pods-details-list";
import React from "react";
import { observable } from "mobx";
import { observer } from "mobx-react";

@observer
export class NamespaceDetailsItem extends React.Component<Component.KubeObjectDetailsProps<K8sApi.Namespace>> {

  @observable private pods: K8sApi.Pod[];

  async componentDidMount() {
    this.pods = await K8sApi.podsApi.list({namespace: this.props.object.getName()});
  }

  render() {
    return (
      <div>
        <Component.DrawerTitle title="Pods" />
        <PodsDetailsList pods={this.pods}/>
      </div>
    )
  }
}

Since NamespaceDetailsItem extends React.Component<Component.KubeObjectDetailsProps<K8sApi.Namespace>> it can access the current namespace object (type K8sApi.Namespace) through this.props.object. This object can be queried for many details about the current namespace. In this example the namespace's name is obtained in componentDidMount() using the K8sApi.Namespace getName() method. The namespace's name is needed to limit the list of pods to only those in this namespace. To get the list of pods this example uses the kubernetes pods api, specifically the K8sApi.podsApi.list() method. The K8sApi.podsApi is automatically configured for the currently active cluster.

Note that K8sApi.podsApi.list() is an asynchronous method, and ideally getting the pods list should be done before rendering the NamespaceDetailsItem. It is a common technique in React development to await async calls in componentDidMount(). However, componentDidMount() is called right after the first call to render(). In order to effect a subsequent render() call React must be made aware of a state change. Like in the appPreferences guide, mobx and mobx-react are used to ensure NamespaceDetailsItem renders when the pods list is updated. This is done simply by marking the pods field as an observable and the NamespaceDetailsItem class itself as an observer.

Finally, the NamespaceDetailsItem is rendered using the render() method. Details are placed in drawers, and using Component.DrawerTitle provides a separator from details above this one. Multiple details in a drawer can be placed in <Component.DrawerItem> elements for further separation, if desired. The rest of this example's details are defined in PodsDetailsList, found in ./pods-details-list.tsx:

import React from "react";
import { Component, K8sApi } from "@k8slens/extensions";

interface Props {
  pods: K8sApi.Pod[];
}

export class PodsDetailsList extends React.Component<Props> {

  getTableRow(index: number) {
      const {pods} = this.props;
      return (
          <Component.TableRow key={index} nowrap>
              <Component.TableCell className="podName">{pods[index].getName()}</Component.TableCell>
              <Component.TableCell className="podAge">{pods[index].getAge()}</Component.TableCell>
              <Component.TableCell className="podStatus">{pods[index].getStatus()}</Component.TableCell>
          </Component.TableRow>
      )
  }

  render() {
      const {pods} = this.props
      if (!pods?.length) {
          return null;
      }

      return (
          <div >
              <Component.Table>
                  <Component.TableHead>
                      <Component.TableCell className="podName">Name</Component.TableCell>
                      <Component.TableCell className="podAge">Age</Component.TableCell>
                      <Component.TableCell className="podStatus">Status</Component.TableCell>
                  </Component.TableHead>
                  {
                      pods.map((pod, index) => this.getTableRow(index))
                  }
              </Component.Table>
          </div>
      )
  }
}

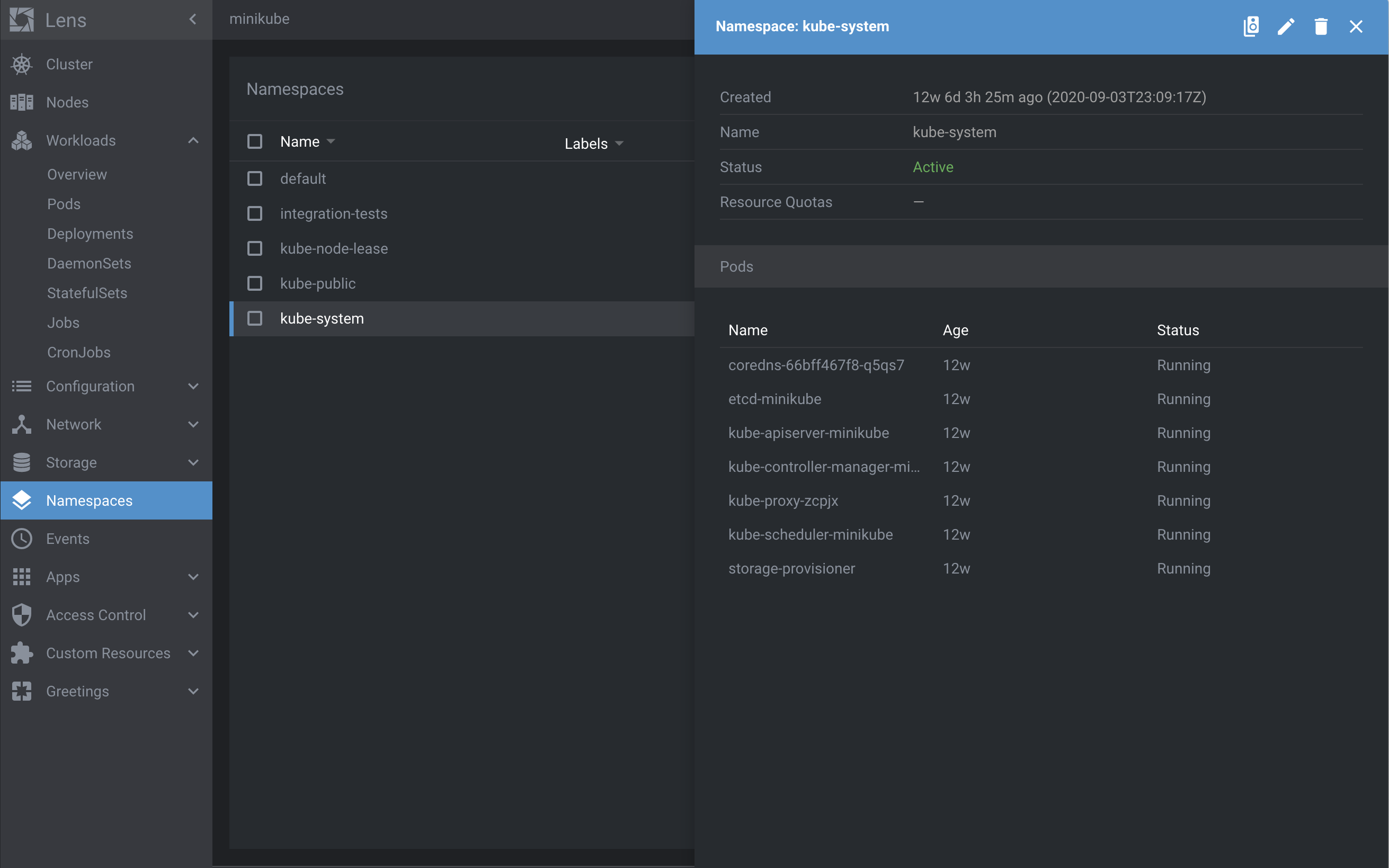

PodsDetailsList produces a simple table showing a list of the pods found in this namespace:

For each pod the name, age, and status are obtained using the K8sApi.Pod methods. The table is constructed using the Component.Table and related elements. See Component documentation for further details.
